high resolution p2.5 magnet front service 480*640mm cabinets video indoor led screen for cinema movie theater
P2.5 indoor SMD full color video led display screen
Now More LED Display Screen is used as the replacement of projector for the meeting room,
people will be pleased by evaluating the return on investment on their rooms and as part of an overall upgrade strategy.
That's the trend by the feedback of our clients.
.

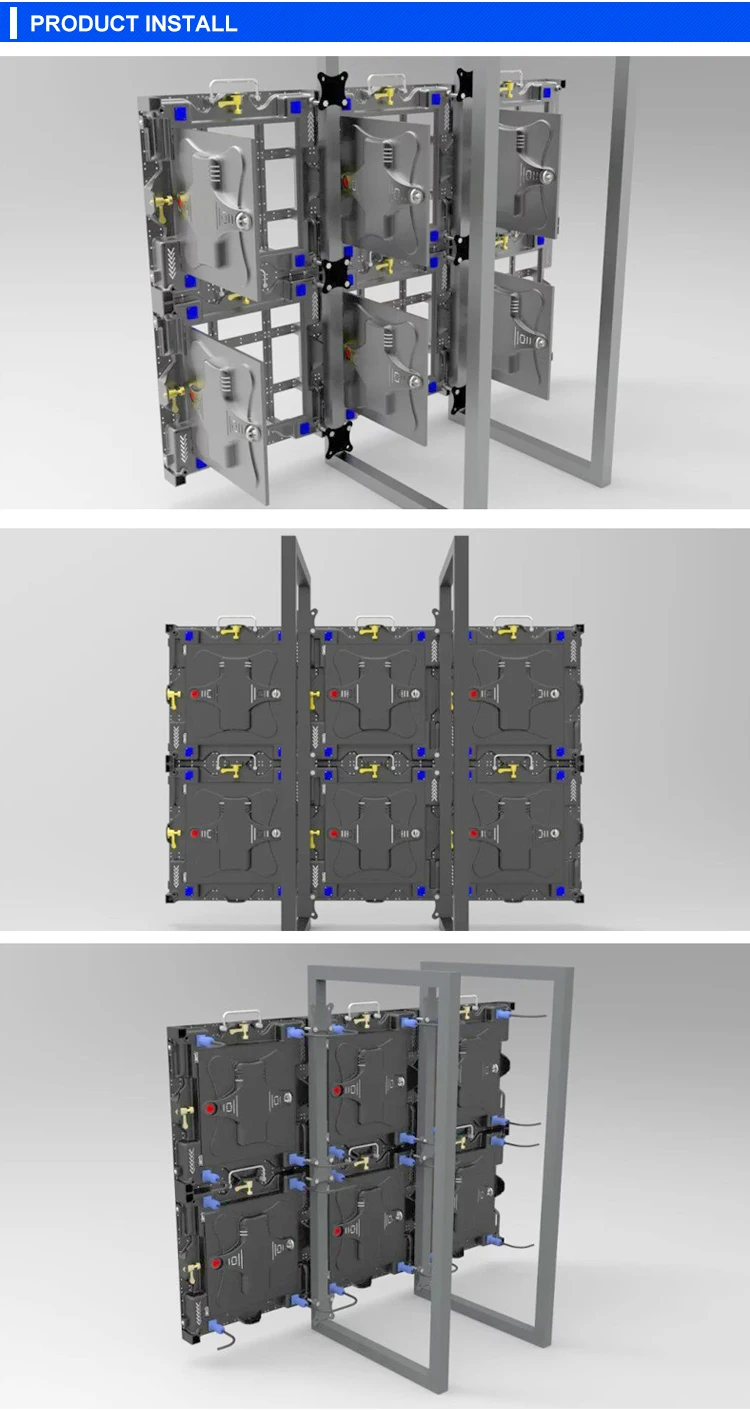

Lightweight Die-casting Aluminum Rental LED Video Wall series:
| Unit Module | Item: | Parameter |
| Model: | PH2.5mm |
| Pixel Pitch: | 2.5mm |
| Pixel configuration: | 3in1 (1R1G1B) |

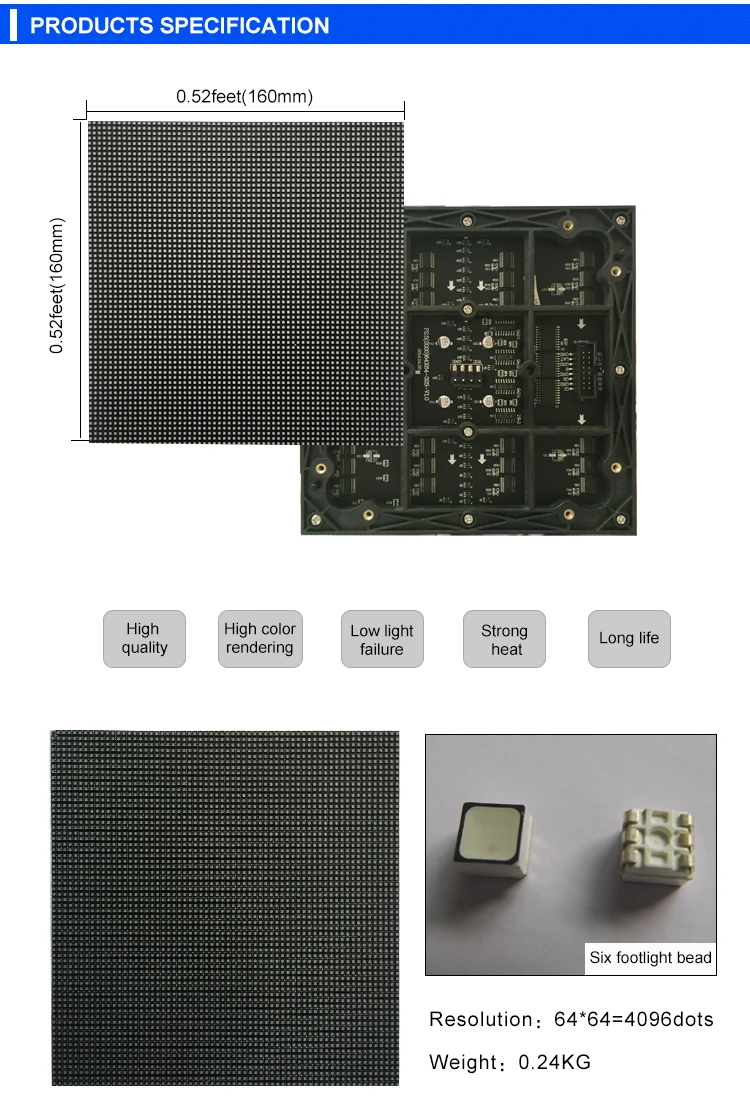

| Module Size: | 160mm*160mm 320mm*160mm |
| Module Resolution: | 64dots(W) *64dots(H) 128dots(W) *64dots(H) |
| Module Thickness: | 10MM |
| Module Weight: | 0.2 KG 0.4KG |
| Package LED mode: | SMD2121 |
| Max Power: | 16W |
| Pixel Density: | 160000 dots / SQM |
| Driving Method: | Constant Current Driving |
| Scan Method: | 1/32 or 1/16 scan |
| Interface Way: | HUB 75 |
| Brightness: | ≥ 1600CD /SQM |

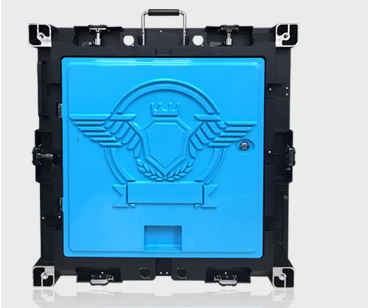

| Unit Cabinet | Cabinet Size: | 480mm *480mm (Customize) |
| Cabinet Composing: | 16pcs |
| Power Supply Mode: | 5V/40A(3pcs/cabinet) |
| Cabinet Resolution: | 256dots *256dots |
| Viewing Distance: | 2.5-35M (according to the big screen size) |
| Optimal Viewing Angle: | Horizontal angle: 160 degree; Vertical angle: 120 degree |
| Environment Temperature: | Storage: -40 degree ~ +85 degree Work: -20 degree ~ +60 degree |
| Relative Humidity: | 10% ~ 95% |
| Power | Operating Voltage: | AC:100V~120V AC:220~240V |
| Average Power: | ≤170W/ SQM |
| Max Power Consumption: | ≤ 350W/SQM |
| Control System | Computer: | Pentium4 or I3 or above |
| Operate System: | Win98/2000/XP/Win 7/Win10 |
| Control Mode: | Synchronization with PC |
| Main Technical Parameter | Driving Device: | IC Constant Current Driving |
| Refresh Rate: | ≥ 2800Hz |
| Gray/Color: | RGB each 256 grade, can display 16.7color |
| MTPF: | ≥ 9000hours |
| Power Switch: | Automatic Switch |
| Display Mode: | 1920*10801024*7681280*960 |

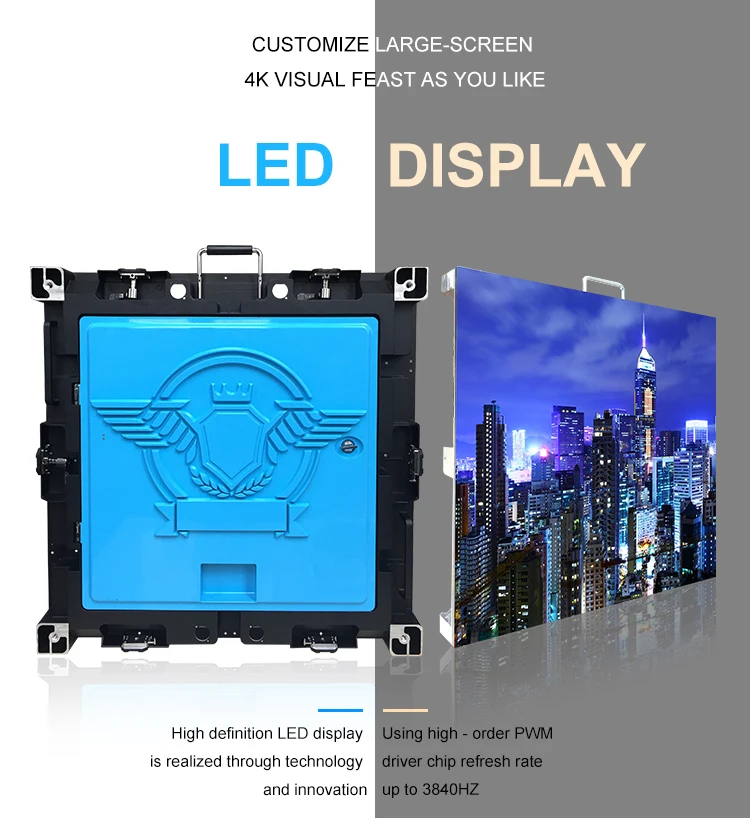

 | Excellence Appearance Combing aesthetics and ergonomic design, it has came out with a hard, smooth molding the die-casting aluminum material has provided the excellent quality, it featured the unique cabinet ratio design, every detail has its excellent performance. |

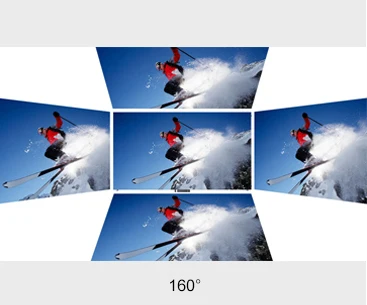

| Ultra Wide Viewing Angle Both 160° from horizontal & vertical for the viewing angle.Seeing from five directions, it would be still the natural and clear image in an LED display. |  |

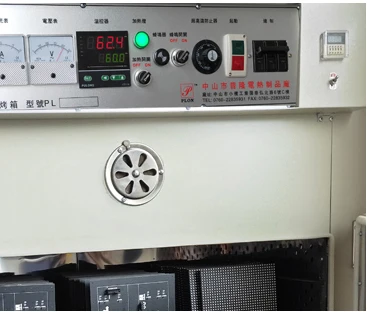

 | High temperature test Each module is placed in the oven and tested at a high temperature of 60 degrees |

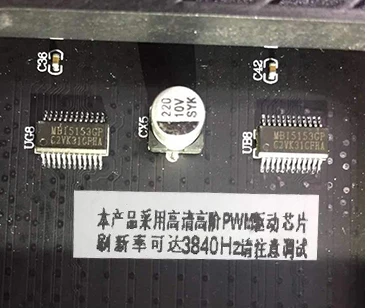

| High quality IC High clear high order PWM drive chip, the refresh rate of MBI 5153 can reach 3840hz, To play waterless,no shadow,screen More exquisite high definition,bright and beautiful |  |
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us via whatsApp, wechat ,so that we can offer you a quote on time. -Please inform your requirements as clear as possible for get the price faster. Indoor use or outdoor use? The size in Length and height? What purpose use?
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-7-25days, It depends on the order quantity and the season you place the order.
4.What is your payment term?
-T/T,Western Union,Cash,Alibaba Trade Assurance online..This is negotiable.
5.What is the shipping method?
-It could be shipped by sea/air/express.Please confirm with us before placing orders.
